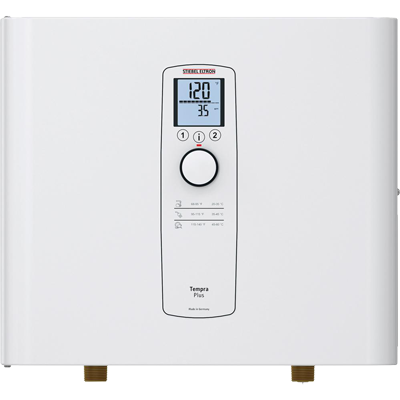

Stiebel Eltron Tempra 24 Plus (New 3rd Gen.)
The 24 KW Stiebel Eltron Tempra 24 Plus electric tankless water heater is our most popular whole house tankless water heater in Canada. Designed with Canadian climates in mind, it is a perfect balance between power required to operate and providing adequate hot water to a home.
The Tempra 24 Plus features Stiebel Eltrons true microprocessor-controlled temperature regulation with a convenient digital temperature display. A dial on the front of the unit allows you to set the output water temperature anywhere between 30°C and 60°C. The Tempra series of electric tankless water heaters are one of only a few tankless water heaters available today that feature a true thermostatic temperature and full power-modulation experience. Both the incoming water temperature and flow rate are monitored so that the unit always provides the temperature you have it set to with no fluctuations.
Like other Stiebel Eltron Tempra Plus units, the Tempra 24 Plus features dynamic Advanced Flow Control technology. This allows the unit to automatically reduce the flow of water when the flow demand is exceeding the heater's capacity. This feature is particularly beneficial in cold climates such as Canada, or in applications where the electrical service does not permit the installation of a larger model. It is also recommended to purchase a Plus unit for any temperature critical applications such as commericial dishwashers if the flow rates are not predictable.
The Stiebel Eltron Tempra Plus Series electric tankless water heaters feature the most precise temperature control of any tankless water heater on the market today!
in Gallons Per Minute 40°C (105°F) Output Temp | |
|---|---|
| Incoming Water Temp: | Flow Rate (GPM) |
| 4°C (40°F) | 2.5 GPM |
| 7°C (45°F) | 2.7 GPM |
| 10°C (50°F) | 3.0 GPM |
| 13°C (55°F) | 3.3 GPM |
| 15°C (60°F) | 3.6 GPM |
| 18°C (65°F) | 4.1 GPM |
| 21°C (70°F) | 4.7 GPM |
| 24°C (75°F) | 5.4 GPM |
| Stiebel Eltron Tempra 24 Specifications | |
|---|---|
| Thermostatically Controlled? |
Yes, digital temperature control and full power modulation based on flow rate and incoming water temperature. |
| Advanced Flow Control Technology? |
Yes, dynamic flow control technology automatically adjusts the flow of water when the unit's sensor's detect that the flow demand is exceeding the heater's capacity. This feature is exclusive to Stiebel Eltron Tempra Plus Series tankless water heaters! |
| Preset Temperature Memory Buttons: | Yes |
| Flow Rate Monitor: | Yes |
| Energy Monitor Showing Cost Savings: | Yes |
| Hinged Case: | Yes |
| KW | 24 KW @ 240v / 18 KW @ 208v |
| Voltage: | 208 - 240 volts / single phase / 50 - 60 Hz |
| Max. Amps: | 100 AMPS @ 240v / 88 AMPS @ 208v |
| Breakers Required:* | 2 x 50 AMP Breakers (240 volt, double pole) |
| Wiring:* | Minimum 2 x #8 AWG Copper (depends on local codes) |
| Dimensions: | 16.6 x 14.5 x 4.6" (42 x 36.8 x 11.7 cm) |
| Weight: | 15.4 lbs (7.3 KG) |
| Pipe Fittings: | 3/4" NPT |
| Energy Efficiency: | 99%+ |
| Activation Flow Rate: | 0.50 GPM / 1.9 LPM |
| Max. Water Pressure: | 150 psi (tested to 300 psi) |
| Max. Output Temperature: | 60C (140F) |
| Max. Input Temperature: | 55C (131F) |
| Warranty: | Manufacturer's 3 Year Warranty |
| Safety: | ETL Listed (US & Canada) - meets all applicable standards, including ANSI/UL 499 (USA) and CSA-E335-1/3E-94 (Canada) |
| Protection: | microprocessor-based thermostatic temperature control (flow rate and temperature modulating) with thermal hi-limit cut-out switch monitoring each heating module |
* Breaker size and wire gauge must meet all applicable local, state, provincial, and national electrical codes for your area - these are only guidelines that will apply to most installations. Some codes require use of electrical sub-panel for installation, especially when heater is not mounted within line-of-sight of the main electrical panel. Wiring should be sized to maintain a voltage drop of less than 3% under load. Please consult your electrician for more details.
Selecting an Installation Location
The Stiebel Eltron Tempra 24 Plus electric tankless water heater can be installed in a wide variety of locations due to it's small size. It is important to note that there are a number of guidlines that you should follow in order to choose a safe and convenient installation location. For full installation instructions download the Stiebel Eltron Tempra Installation Guide.
- In most cases it is easiest to install where your traditional tank was located
- Install on a solid and secure surface
- Install close to electrical panel
- Install 24" from combustible materials
- Do not install outdoors
- Do not install in high humidity environments
- Do not install in a location that is difficult to access
- Do not install where there is a potential for the unit to freeze
Recommended Clearances
It is recommended to proivde a minimum of 5 inches clearance in all directions (except the back panel of course).
Product Requirements
Please note: A minimum 150 AMP household electrical service is highly recommended and will likely be required to install this model. If you are unsure of your electrical capacity in your home, please consult your electrician or contact us for assistance before ordering.
